Product Overview
- Full-Frame | f/2 to f/16
- Apochromatic Design
- One Aspherical Element
- Floating Elements System
- Manual Focus Design
- Minimum Focusing Distance: 2.3'
- Filter Thread: 39mm
- Built-In Extendable Lens Hood

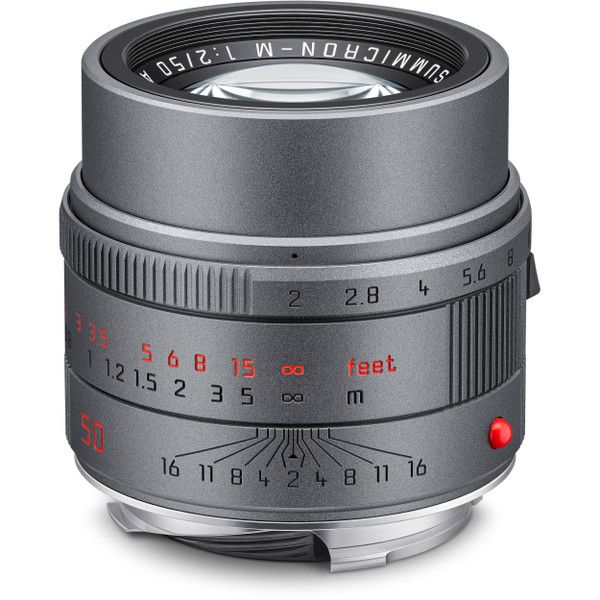

Pairing the classic normal focal length with an optically refined design, the metal gray APO-Summicron-M 50mm f/2 ASPH. Lens from Leica is a fast standard prime characterized by its apochromatic designation. Featuring anomalous partial dispersion and high-refractive-index glass in its design, this lens focuses red, green, and blue wavelengths at the same focal plane, virtually eliminating chromatic aberrations. One aspherical element is also featured in the design to reduce spherical aberrations, and a floating element maintains clarity and sharpness throughout the focusing range from 2.3' to infinity. This compact 50mm lens is also distinguished by its compact form factor, making it ideal for everyday use. Like all M-mount lenses, this 50mm f/2 features a manual focus design and a convenient focusing tab for more refined control during use.
Technical Data
Angle of view (diagonal, horizontal, vertical): 47° / 40° / 27° (With Leica M8 models: 36° / 30° / 20°)
Optical design: Number of elements/ groups: 8 /5
Focal length: 52.3 mm
Entrance pupil: 24.4mm (related to the first lens surface in light direction)
Focusing range: 0.7 m to ∞
Distance setting: Scale: combined meter/graduation
Smallest object field: approx. 271 mm x 407 mm (With Leica M8 models: 203 mm x 305 mm)
Highest reproduction ratio: 1:11.3
Aperture Setting / Function: prefix with click-stops, half-steps
Smallest aperture: f/16
Bayonet: Leica M quick-change bayonet
Filter (type) internal thread for screw-in type filters E39
Lens hood: built-in, extendable by rotating
Dimensions and weight: Length: 47 mm
Largest diameter: approx. 53 mm
Weight: approx. 300 g (metal gray paint finish)
